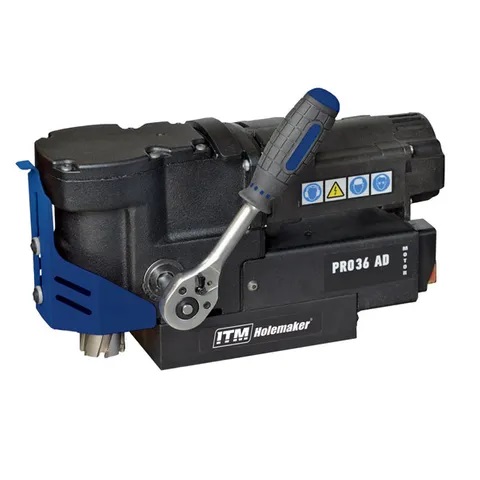

The PRO 36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable drilling of holes up to 36mm diameter to a depth of up to 30mm (1-3/16").
PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4") Weldon shank.

Features:.

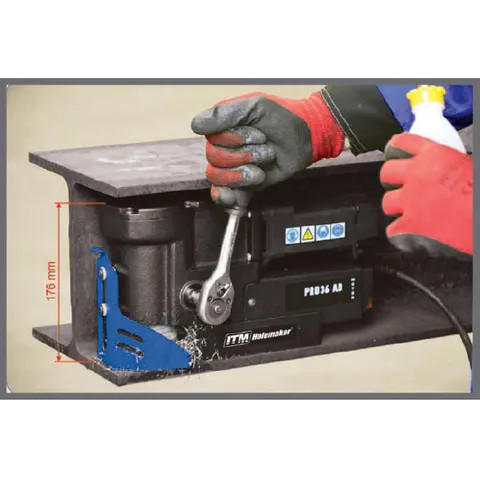

Ultra-low profile mag drill of 176mm height only.
Extremely low weight of just 9.5 kg (21 lbs).
Milling capacity up to 36 mm (1-7/16”).
Accepts also twist drills with 19,05 mm (3/4”) Weldon shank.
Stroke – 39 mm.
Integrated swarf guard.
Detachable feed lever (feat. ratchet) can be fixed from either side.
Lifting handle for easy transportation.
Cooling with a bottle

Specs

Capacity ( Diameter ): 36mm
Capacity ( Depth ): 30mm
Capacity ( Twist Drill ): 12mm
Motor Power: 920 watt
Input Power: 1000 watt Single Phase 240V
Speed: 370rpm
Weight: 9.5kg
Magnetic Dead Lift: 8900Nm On 25mm Steel Plate
Stroke: 39mm
Height: 176mm Constant Working Height
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Comes complete in plastic carry case
